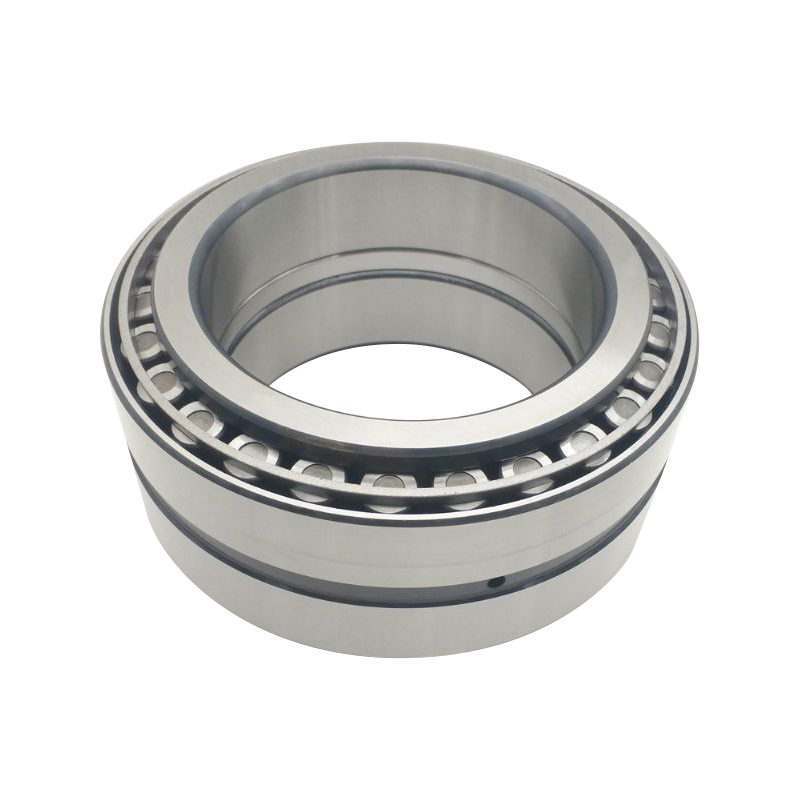

BT2B 332504/HA2 - Rulmenți cu role conice cu două rânduri

Rulmenții cu role conice cu două rânduri sunt un tip specializat de rulmenți proiectați pentru a rezista simultan la sarcini radiale și bidirecționale mari. Ele oferă o soluție de mare rigiditate și capacitate mare pentru aplicații precum cutii de viteze, laminoare și mașini de forat tunel. În comparație cu rulmenții cu un singur rând, aceștia oferă o rigiditate superioară, o durată de viață mai lungă și o frecare mai mică.

Contactați-ne

PREV：No previous product URMĂTORUL：30202 Rulment cu role conice pe un singur rând

Descriere
Specificații
Contactați-ne

Caracteristici cheie și avantaje
· Capacitate de încărcare grea: Proiectat pentru a suporta sarcini radiale și axiale bidirecționale mari.
· Rigiditate ridicată (rigiditate): Oferă un aranjament rigid al rulmenților, care este benefic pentru aplicații de precizie.
· Locație/Poziționare axială: Localizează arborele axial în ambele direcții într-un joc axial stabilit sau sub o preîncărcare.
· Durată lungă de viață: Utilizează profile optimizate ale canalelor de rulare pentru a îmbunătăți distribuția sarcinii, a reduce stresul și a îmbunătăți rezistența la uzură.
· Frecare și zgomot reduse: Designul optimizat al capetelor rolei și finisarea suprafeței facilitează formarea peliculei de lubrifiant, care reduce frecarea și poate reduce zgomotul și vibrațiile.
· Fiabilitate: Mărește fiabilitatea operațională chiar și în condiții dificile și oferă o sensibilitate mai mare la dezaliniere.

Domenii de aplicare (aplicații)
·În industria minieră, acestea sunt utilizate pentru echipamente de ridicare și excavare a tunelurilor.
·Laminoarele au, de asemenea, o cerere mare pentru rulmenți cu role conice pe două rânduri.

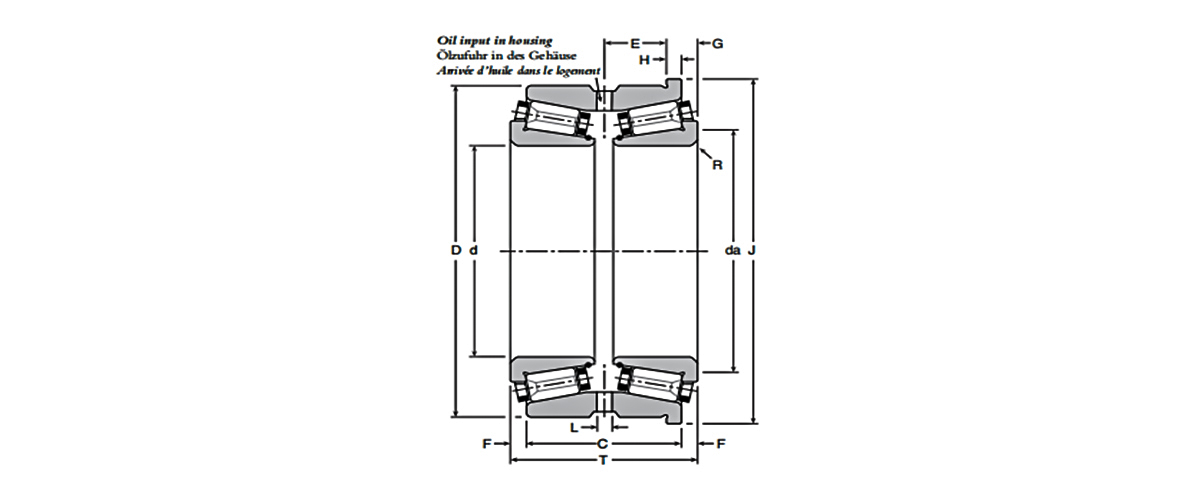

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					Dinamic	Static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
228.6	488.95		152.4	254	2828.7	4050			205	331945 Rulment
260	480		220	284	3897	6615			210	BT2B 328130 Rulment
260.35	422.275		139.7	178.592	2016	3645			86.5	Rulment BT2B 328187/HA2
300.038	422.275		136.525	174.625	1959.3	4275			71.5	Rulment BT2B 332504/HA2
317.5	447.675		146.05	180.975	2268.9	4860			84	BT2B 332516 A/HA1 Rulment
333.375	469.9		152.4	190.5	2377.8	5130			98	331775 B Rulment
340	460		128	160	1976.4	4410			71	BT2B 332830 Rulment
346.075	488.95		158.75	200.025	2551.5	5670			110	331981 Rulment
355.6	501.65		107.95	155.575	1778.4	3825			87	Rulment BT2B 332506/HA2
360	480		128	160	1989.9	4500			73	BT2B 332831 Rulment
368.249	523.875		169.862	214.312	3042	6750			140	BT2B 332603/HA1 Rulment
371.475	501.65		107.95	155.575	1778.4	3825			77.4	331606 A Rulment
384.175	546.1		177.8	222.25	3351.6	7470			161	331197 A Rulment
400	540		135	170	2503.8	5670			106	Rulment BT2-8143/HA1
406.4	539.75		101.6	142.875	1635.3	3960			82.4	BT2B 328389 Rulment
415.925	590.55		193.675	244.475	3757.5	8685			205	331656 Rulment
431.8	571.5		146.05	192.088	2562.3	6255			127	BT2B 332237 A/HA1 Rulment
431.8	571.5		111.125	155.575	1030.5	4590			100	Rulment BT2B 332604/HA1
447.675	635		206.375	257.175	3960	9900			245	BT2B 332176 A Rulment
479.425	679.45		222.25	276.225	4509	11430			302	331657 Rulment
498.475	634.873		142.875	177.8	2475	6615			125	331605 B Rulment
501.65	711.2		231.775	292.1	4950	12330			343	BT2B 332605 A/HA1 Rulment
536.575	761.873		247.65	311.15	5643	14400			430	BT2B 332446 Rulment
558.8	736.6		177.8	225.425	3861	10440			150	331640 A Rulment
571.5	812.8		263.525	333.375	5796	14400			520	BT2B 332447 Rulment
602.945	787.4		158.75	206.375	3618	9540			180	331576 B Rulment
609.6	820		158.75	206.375	3618	9540			292	331500 Rulment
711.2	914.4		139.7	190.5	3420	8685			265	Rulment BT2B 328028/HA1
723.9	914.4		139.7	187.325	3420	8685			250	331554 A Rulment
723.9	914.4		139.7	187.325	3420	8685			250	BT2B 331554 B/HA1 Rulment

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
762	965.2		133.35	187.325	3222	8820			290	331780 A Rulment
774.962	1016		209.63	266.7	6477.3	16200			525	BT2B 332625 Rulment
914.4	1066.8		101.6	139.7	2340	7200			190	Rulment BT2B 332501/HA5
1160	1540		290	400	12780	34200			1900	Rulment BT2B 332780/HA5
1250	1500		190	250	6633	20160			795	Rulment BT2B 328339/HA4
240	480	200		220	3253.5	4950			183	BT2B 332931 Rulment
300	440	105		105	968.4	1836			48.5	332168 Rulment
300.038	422.275	150.812		150.812	1959.3	4275			70	331951 Rulment
303.212	495.3	263.525		263.525	4427.1	8820			212	Rulment BT2B 332685/HA1
305.033	560	200		200	1509.3	4770			200	332068 Rulment
305.033	560	200		199.263	1509.3	4770			205	Rulment BT2B 334087/HA3
305.07	500	200		200	2460.6	4680			150	332169 A Rulment
305.07	500	200		200	2460.6	4680			150	332169 Rulment AA
305.07	524	200		200	2460.6	4680			180	Rulment BT2B 334110/HA3
317.5	422.275	128.588		128.588	1606.5	3735			51.5	BT2B 328699 G/HA1 Rulment
320	515	160		160	2142.9	3960			160	Rulment BT2-8017/HA3
333.375	469.9	166.688		166.688	2377.8	5130			92.5	BT2B 328695 A/HA1 Rulment
342.9	533.4	146.05		139.7	1235.7	3960			115	331713 A Rulment
346.075	488.95	174.625		174.625	2551.5	5670			110	331527 C Rulment
346.075	488.95	174.625		174.625	2551.5	5670			113	BT2B 328410 C/HA1 Rulment
346.075	488.95	95.25		104.775	607.5	2475			62	Rulment BT2B 332913/HB1
360	560	160		160	2300.4	4185			140	Rulment BT2-8000/HA3
380	560	200		200	2691.9	5895			165	Rulment BT2-8009/HA3
384.175	546.1	193.675		193.675	3351.6	7470			152	331158 A Rulment
384.175	546.1	193.675		193.675	3351.6	7470			166	Rulment BT2B 328580/HA1
384.175	546.1	193.675		193.675	3351.6	7470			152	BT2B 331837 Rulment
385.762	514.35	152.4		152.4	2061	5400			92	Rulment BT2B 328035/HA1
386	574	220		220	2670.3	5895			185	Rulment BT2-8010/HA3VA901
390	546.1	141.288		141.288	2105.1	4590			102	Rulment BT2B 328705/HA1
390	570	200		200	2670.3	5895			170	Rulment BT2B 328896/HA3

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
390	590	200		200	2670.3	5895			200	Rulment BT2B 328934/HA3
390	548	180		180	2295	5265			155	Rulment BT2B 334045/HA3
400	650	240		240	3519	7335			290	332167 Rulment
400	650	240		240	3519	7335			305	BT2B 332167 C/HA3 Rulment
406.4	546.1	138.113		138.113	2105.1	4590			89	BT2B 331840 C/HA1 Rulment
406.4	546.1	138.113		138.113	1980	4590			89	Rulment BT2B 331840 G/HA1C150
406.4	546.1	164.275		164.275	1775.7	3825			135	BT2B 334085 A/HA1VA928 Rulment
406.4	546.1	164.275		164.275	1775.7	3825			135	BT2B 334085/HA1VA901 Rulment
408.4	546.1	125		150	1766.7	4275			99	BT2B 328466/HA1 Rulment
408.4	546.1	98		120	1442.7	3105			76.5	BT2B 328874/HA1 Rulment
415.925	590.55	209.55		209.55	3757.5	8685			192	331445 Rulment
415.925	590.55	209.55		209.55	3757.5	8685			192	BT2B 328283/HA1 Rulment
420	620	200		200	2673	6480			210	Rulment BT2-8016/HA3
430	535	84		84	972	2700			44.5	Rulment BT2B 334013/HA1
445	620	160		160	1908	4590			135	Rulment BT2B 334069/HA3
445	620	180		180	1908	4590			160	BT2B 334113/HA3VA901 Rulment
447.675	635	223.838		223.838	3960	9900			236	331562 Rulment
447.675	635	223.838		223.838	3960	9900			246	Rulment BT2B 332911 B/HB1
447.675	635	223.838		223.838	3960	9900			246	BT2B 332911 C/HA1 Rulment
450	595	178		178	2852.1	7335			140	BT2B 328523/HA1 Rulment
460	680	180		180	2826	6255			210	BT2B 328876/HA1 Rulment
460	680	180		180	2826	6255			250	Rulment BT2B 334030/HA1
464	615	136		150	1944	5265			133	Rulment BT2-8215
482	640	160		160	1584	4680			145	Rulment BT2B 334112/HA3
482.6	733.425	190		190	2574	7470			293	Rulment BT2-8142/HA3
489.026	634.873	152.4		152.4	2475	6615			130	BT2B 331848 Rulment
500	730	280		280	5940	14040			420	331676 A Rulment
501.65	711.2	250.825		250.825	4950	12330			330	331182 Rulment
501.65	711.2	250.825		250.825	4950	12330			330	331182 A Rulment
519.113	736.6	258.762		258.762	5445	14040			370	Rulment BT2B 332662 B/HB1

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
519.113	736.6	258.762		258.762	5445	14040			370	Rulment BT2B 332662/HB1
536.575	761.873	269.875		269.875	5643	14400			410	331682 Rulment
558.8	736.6	196.85		196.85	3861	10440			235	331607 B Rulment
560	820	242		242	4509	10260			425	BT2B 332626/HA7 Rulment
571.5	812.8	285.75		285.75	6489	16200			500	BT2B 331476 Rulment AG/HA1
571.5	812.8	285.75		285.75	6489	16200			500	BT2B 331854 C/HA1 Rulment
571.5	812.8	285.75		285.75	6489	16200			500	BT2B 331854/HA1 Rulment
580	830	280		280	6138	14940			515	331677 Rulment
609.6	787.4	171.45		171.45	3618	9540			218	Rulment BT2B 331858/HA1
609.6	820	171.45		171.45	3618	9540			265	Rulment BT2B 332424/HA3
635	939.8	304.8		304.8	6039	14940			720	331555 B Rulment
650	1030	270		270	7920	16470			900	Rulment BT2B 328306/HA4
660.4	812.8	176.212		176.212	3222	10080			195	331198 Rulment
690	980	355		355	9204.3	22500			890	Rulment BT2-8164/HA4
800	1260	375		375	13230	30150			1850	Rulment BT2B 334032/HA4
901.7	1295.4	438.15		450.85	15120	38700			2000	331306 Rulment
939.8	1333.5	463.55		463.55	15840	44100			2230	331350 Rulment
110	180		76	95	400	730			8.63	352122 Rulment
120	200		90	110	508	910			11.7	352124 Rulment
130	200		80	102	450	800			9.72	352026 Rulment
130	210		90	110	540	1000			13.5	352126 Rulment
140	210		82	104	480	830			10.9	352028 Rulment
140	225		90	115	560	1100			15.5	352128 Rulment
150	225		86	110	500	900			14.5	352030 Rulment
150	250		112	138	778	1560			25.8	352130 Rulment
160	240		90	116	700	1300			16.5	352032 Rulment
160	270		120	150	990	2160			34.9	352132 Rulment
170	260		100	128	830	1800			21	352034 Rulment
170	280		120	150	1100	2400			35.6	352134 Rulment
180	280		110	142	1005	2340			27.9	352036 Rulment

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
180	300		134	164	1290	2500			43.2	352136 Rulment
190	290		110	142	1005	2340			28.8	352038 Rulment
190	320		130	170	1160	2410			50.4	352138 Rulment
200	310		120	154	1500	2900			41.9	352040 Rulment
200	340		150	184	1600	3300			61.5	352140 Rulment
220	340		128	166	1210	2500			42.7	352044 Rulment
220	370		150	195	1700	3200			76.3	352144 Rulment
240	360		128	166	1430	3200			52.8	352048 Rulment
240	400		163	210	2000	4100			98.1	352148 Rulment
260	400		146	190	1530	3630			75.6	352052 Rulment
260	440		180	225	2200	4600			126	352152 Rulment
280	420		146	190	1820	4050			81.3	352056 Rulment
300	460		168	220	2200	5300			117	352060 Rulment
25	52	19	36.5	39.75				13300	0.34	74025/74052PT Rulment
30	62	23	42.5	46.75				11600	0.535	70030/70062PT Rulment
30	66.675	23.5	42.48	47.24				10400	0.63	Rulment 80030/80066XPT
30	68	23.5	42.48	47.24				10400	0.63	80030/80068PT Rulment
31.75	72	26	46.5	51.75				9600	0.75	Rulment 100031X/100072PT
31.75	76.2	26	46.5	51.75				9600	0.75	Rulment 100031X/100076XPT
31.75	80	26	46.5	51.75				9600	0.75	Rulment 100031X/100080PT
33.338	66.675	23.5	42.48	47.24				10400	0.63	Rulment 80033X/80066XPT
33.338	68	23.5	42.48	47.24				10400	0.63	Rulment 80033X/80068PT
34.925	72	26	46.5	51.75				9600	0.75	Rulment 100034X/100072PT
34.925	76.2	26	46.5	51.75				9600	0.75	Rulment 100034X/100076XPT
34.925	80	26	46.5	51.75				9600	0.75	Rulment 100034X/100080PT
35	66.675	23.5	42.48	47.24				10400	0.6	Rulment 80035/80066XPT
35	68	23.5	42.48	47.24				10400	0.63	80035/80068PT Rulment
35	72	26	46.5	51.75				9600	0.75	100035/100072PT Rulment
35	76.2	26	46.5	51.75				9600	0.75	Rulment 100035/100076XPT
35	80	26	46.5	51.75				9600	0.75	100035/100080PT Rulment

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
38.1	76	26	45.5	51.25				8800	0.92	Rulment 101038X/101076PT
38.1	76.2	26	45.5	51.25				8800	0.92	Rulment 101038X/101076XPT
38.1	80	26	45.5	51.25				8800	0.92	Rulment 101038X/101080PT
40	76.2	26	45.5	51.25				8800	0.92	101040/101076XPT Rulment
40	80	26	45.5	51.25				8800	0.915	101040/101080PT Rulment
40	85	24.5	48.66	51.83				8200	1.025	112040/112085PT Rulment
41.275	76	26	45.5	51.25				8800	0.92	Rulment 101041X/101076PT
41.275	76.2	26	45.5	51.25				8800	0.92	Rulment 101041X/101076XPT
41.275	80	26	45.5	51.25				8800	0.92	Rulment 101041X/101080PT
41.275	85	24.5	48.66	51.83				8200	1.03	Rulment 112041X/112085PT
44.45	85	24.5	48.66	51.83				8200	1.03	Rulment 112044X/112085PT
44.45	85	28	55.66	58.83				8200	1.07	Rulment 119044X/119085PT
44.45	88.9	28	55.66	58.83				8200	1.07	Rulment 119044X/119088XPT
44.45	90	29	51.3	57.65				7400	1.17	Rulment 111044X/111090PT
44.45	93.266	29	51.3	57.65				7400	1.17	Rulment 111044X/111093XPT
45	85	24.5	48.66	51.83				8200	0.965	112045/112085PT Rulment
45	85	28	55.66	58.83				8200	1.07	119045/119085PT Rulment
45	88.9	28	55.66	58.83				8200	1.07	Rulment 119045/119088XPT
50	90	29	51.3	57.65				7400	1.17	111050/111090PT Rulment
50	93.266	29	51.3	57.65				7400	1.17	111050/111093XPT Rulment
50	96.838	29.5	54	59.5				6900	1.63	110050/110096XPT Rulment
50	98.425	29.5	54	59.5				6900	1.63	110050/110098XPT Rulment
50	100	29.5	54	59.5				6900	1.63	110050/110100PT Rulment
50.8	90	29	51.3	57.65				7400	1.17	Rulment 111050X/111090PT
50.8	96.838	29.5	54	59.5				6900	1.63	Rulment 110050X/110096XPT
50.8	98.425	29.5	54	59.5				6900	1.63	Rulment 110050X/110098XPT
50.8	100	29.5	54	59.5				6900	1.63	Rulment 110050X/110100PT
53.975	96.838	29.5	54	59.5				6900	1.63	Rulment 110053X/110096XPT
53.975	98.425	29.5	54	59.5				6900	1.63	Rulment 110053X/110098XPT
53.975	100	29.5	54	59.5				6900	1.63	Rulment 110053X/110100PT

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
55	96.838	29.5	54	59.5				6900	1.63	110055/110096XPT Rulment
55	98.425	29.5	54	59.5				6900	1.63	110055/110098XPT Rulment
55	100	29.5	54	59.5				6900	1.54	110055/110100PT Rulment
57.15	96.838	29.5	54	59.5				6900	1.63	Rulment 110057X/110096XPT
57.15	98.425	29.5	54	59.5				6900	1.63	Rulment 110057X/110098XPT
57.15	100	29.5	54	59.5				6900	1.63	Rulment 110057X/110100PT
57.15	100	26.5	46.88	52.44				6600	1.38	Rulment 113057X/113100PT
57.15	101.6	26.5	46.88	52.44				6600	1.38	Rulment 113057X/113101XPT
57.15	110	33	60.3	66.65				6200	2.03	Rulment 120057X/120110PT
57.15	112.712	33	60.3	66.65				6200	2.03	Rulment 120057X/120112XPT
60	100	26.5	46.88	52.44				6600	1.38	113060/113100PT Rulment
60	101.6	26.5	46.88	52.44				6600	1.38	113060/113101XPT Rulment
60	110	33	60.3	66.65				6200	2.03	120060/120110PT Rulment
60	112.712	33	60.3	66.65				6200	2.03	Rulment 120060/120112XPT
60	120	32	59.88	65.44				5700	2.45	130060/130120PT Rulment
60	127	32	59.88	65.44				5700	2.45	130060/130127PT Rulment
60.325	100	26.5	46.88	52.44				6600	1.38	Rulment 113060X/113100PT
60.325	101.6	26.5	46.88	52.44				6600	1.38	Rulment 113060X/113101XPT
63.5	110	33	60.3	66.65				6200	1.94	Rulment 120063X/120110PT
63.5	120	32	59.88	65.44				5700	2.45	Rulment 130063X/130120PT
63.5	127	32	59.88	65.44				5700	2.45	Rulment 130063X/130127PT
65	120	32	59.88	65.44				5700	2.45	130065/130120PT Rulment
65	127	32	59.88	65.44				5700	2.45	130065/130127PT Rulment
69.85	112.712	33	60.3	66.65				5800	1.83	Rulment 124069X/124112XPT
69.85	120	32	59.88	65.44				5700	2.32	Rulment 130069X/130120PT
69.85	120	42	73.12	81.06				5700	3.05	Rulment 135069X/135120PT
69.85	127	32	59.88	65.44				5700	2.45	Rulment 130069X/130127PT
70	112.712	33	60.3	66.65				5800	1.83	Rulment 124070/124112XPT
70	120	32	59.88	65.44				5700	2.32	130070/130120PT Rulment
70	127	32	59.88	65.44				5700	2.45	130070/130127PT Rulment

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
75	127	33.5	60.5	66.75				5300	2.79	133075/133127PT Rulment
75	130	33.5	60.5	66.75				5300	2.79	133075/133130PT Rulment
75	133.35	33.5	60.5	66.75				5300	2.79	133075/133133XPT Rulment
75	136.525	33.5	60.5	66.75				5300	2.79	133075/133136XPT Rulment
76.2	127	33.5	60.5	66.75				5300	2.79	Rulment 133076X/133127PT
76.2	130	33.5	60.5	66.75				5300	2.79	Rulment 133076X/133130PT
76.2	133.35	33.5	60.5	66.75				5300	2.79	Rulment 133076X/133133XPT
76.2	136.525	33.5	60.5	66.75				5300	2.79	Rulment 133076X/133136XPT
80	140	38.5	69.14	77.07				4900	3.78	140080/140140PT Rulment
82.55	140	38.5	69.14	77.07				4900	3.68	Rulment 140082X/140140PT
85	140	38.5	69.14	77.07				4900	3.58	140085/140140PT Rulment
85	170	50.5	89	97.5				4200	7.34	210085/210170PT Rulment
90	133.35	34	60.12	68.06				4800	2.82	117090/117133XPT Rulment
90	150	33.75	62	68.5				4400	3.8	131090/131150PT Rulment
90	152.4	33.75	62	68.5				4400	3.8	131090/131152XPT Rulment
90	152.4	42	78.5	83.9				4300	4.3	160090/160152XPT Rulment
90	158.75	33.75	62	68.5				4400	3.8	131090/131158XPT Rulment
90	158.75	42	78.5	83.9				4300	4.3	160090/160158XPT Rulment
90	160	42	78.5	83.9				4300	4.3	160090/160160PT Rulment
90	161.925	42	78.5	83.9				4300	4.3	160090/160161XPT Rulment
90	170	50.5	89	97.5				4200	7.34	210090/210170PT Rulment
92.075	150	33.75	62	68.5				4400	3.8	Rulment 131092X/131150PT
92.075	152.4	33.75	62	68.5				4400	3.8	Rulment 131092X/131152XPT
92.075	158.75	33.75	62	68.5				4400	3.8	Rulment 131092X/131158XPT
93.663	150	33.75	62	68.5				4400	3.8	Rulment 131093X/131150PT
93.663	152.4	33.75	62	68.5				4400	3.8	Rulment 131093X/131152XPT
93.663	158.75	33.75	62	68.5				4400	3.8	Rulment 131093X/131158XPT
95	150	33.75	62	68.5				4400	3.8	131095/131150PT Rulment
95	152.4	33.75	62	68.5				4400	3.74	131095/131152XPT Rulment
95	152.4	42	75.8	83.9				4300	4.5	160095/160152XPT Rulment

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
95	158.75	33.75	62	68.5				4400	3.8	131095/131158XPT Rulment
95	170	50.5	89	97.5				4200	7.34	210095/210170PT Rulment
97	150	33.75	62	68.5				4400	3.8	131097/131150PT Rulment
97	152.4	33.75	62	68.5				4400	3.66	131097/131152XPT Rulment
97	158.75	33.75	62	68.5				4400	3.8	131097/131158XPT Rulment
98.425	152.4	42	75.8	83.9				4300	4.3	Rulment 160098X/160152XPT
98.425	158.75	42	78.5	83.9				4300	4.3	Rulment 160098X/160158XPT
98.425	160	42	78.5	83.9				4300	4.3	Rulment 160098X/160160PT
98.425	161.925	42	78.5	83.9				4300	4.3	Rulment 160098X/160161XPT
100	170	46	84	92				3900	7.67	180100/180170PT Rulment
100	180	46	84	92				3900	7.67	180100/180180PT Rulment
100	180.975	46	84	92				3900	7.67	Rulment 180100/180180XPT
100	190	46	84	92				3900	9.58	180100/180190PT Rulment
101.6	165.1	39.5	63.51	73.03				3900	5.68	Rulment 141101X/141165XPT
101.6	170	46	84	92				3900	7.67	Rulment 180101X/180170PT
101.6	180	46	84	92				3900	7.67	Rulment 180101X/180180PT
101.6	180.975	46	84	92				3900	7.81	Rulment 180101X/180180XPT
101.6	190	46	84	92				3900	9.56	Rulment 180101X/180190PT
105	170	46	84	92				3900	7.67	180105/180170PT Rulment
105	180	46	84	92				3900	7.67	180105/180180PT Rulment
105	180.975	46	84	92				3900	7.58	Rulment 180105/180180XPT
105	190	46	84	92				3900	9.38	180105/180190PT Rulment
107.95	165.1	39.5	63.51	73.03				3900	5.68	Rulment 141107X/141165XPT
111.125	180.975	50	82.6	95.3				3600	7.03	Rulment 181111X/181180XPT
111.125	190	50	82.6	95.3				3600	8.68	Rulment 181111X/181190PT
111.125	190.5	50	82.6	95.3				3600	8.78	Rulment 181111X/181190XPT
111.125	200.025	50	82.6	95.3				3600	8.68	Rulment 181111X/181200XPT
115	165	31	55	60				3900	2.85	105115/105165PT Rulment
115	180.975	50	82.6	95.3				3600	6.78	Rulment 181115/181180XPT
115	190	50	82.6	95.3				3600	8.43	181115/181190PT Rulment

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
115	190.5	50	82.6	95.3				3600	8.53	Rulment 181115/181190XPT
115	200.025	50	82.6	95.3				3600	8.68	Rulment 181115/181200XPT
118	180.975	50	82.6	95.3				3600	6.57	Rulment 181118/181180XPT
118	190	50	82.6	95.3				3600	8.13	181118/181190PT Rulment
118	190.5	50	82.6	95.3				3600	8.23	Rulment 181118/181190XPT
118	200.025	50	82.6	95.3				3600	8.68	Rulment 181118/181200XPT
120	165	31	55	60				3900	2.85	105120/105165PT Rulment
120	190	50	82.6	95.3				3500	7.45	184120/184190PT Rulment
120	190.5	5	82.6	95.3				3500	7.45	Rulment 184120/184190XPT
120	199	5	82.6	95.3				3500	7.45	184120/184199PT Rulment
120	200	5	82.6	95.3				3500	7.45	184120/184200PT Rulment
127	175	31	55	60				3900	2.85	Rulment 109127X/109175PT
127	196.85	42	85.74	93.67				3400	7.42	Rulment 164127X/164196XPT
127	200.025	42	85.74	93.67				3400	7.42	Rulment 164127X/164200XPT
127	215	51	92	101				3100	11.05	Rulment 200127X/200215PT
127	215.9	51	92	101				3100	11.05	Rulment 200127X/200215XPT
133.35	196.85	42	85.74	93.67				3400	7.42	Rulment 164133X/164196XPT
133.35	200.025	42	85.74	93.67				3400	7.42	Rulment 164133X/164200XPT
133.35	215	51	92	101				3100	11.05	Rulment 200133X/200215PT
133.35	215.9	51	92	101				3100	10.55	Rulment 200133X/200215XPT
136.525	215	51	92	101				3100	11.05	Rulment 200136X/200215PT
136.525	215.9	51	92	101				3100	10.25	Rulment 200136X/200215XPT
139.7	215	51	92	101				3100	11.05	Rulment 200139X/200215PT
139.7	215.9	51	92	101				3100	11.05	Rulment 200139X/200215XPT
139.7	241.3	59	104	115				2900	17.7	Rulment 240139X/240241XPT
140	200	42	73	80.15				3100	6.38	161140/161200PT Rulment
140	200.025	42	73	80.15				3100	6.38	Rulment 161140/161200XPT
142.875	200	42	73	80.15				3100	6.38	Rulment 161142X/161200PT
142.875	200.025	42	73	80.15				3100	6.38	Rulment 161142X/161200XPT
145	241.3	59	104	115				2900	17.15	240145/240241XPT Rulment

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
145	256	51	92	101				2700	11.83	203145/203256PT Rulment
149.225	241.3	59	104	115				2900	17.15	Rulment 240149X/240241XPT
150	210	42	76	84				3000	9.1	163150/163210PT Rulment
152.4	222.25	49	81.2	93.1				3000	9.08	Rulment 183152X/183222XPT
152.4	254	74	116.9	135.95				2600	21.72	Rulment 281152X/281254XPT
152.4	266.7	74	116.9	135.95				2600	21.72	Rulment 281152X/281266XPT
155.575	254	74	116.9	135.95				2600	21.72	Rulment 281155X/281254XPT
155.575	266.7	74	116.9	135.95				2600	21.72	Rulment 281155X/281266XPT
156	235	51	92	101				2700	11.83	203156/203235PT Rulment
165.1	254	50	88.96	98.48				2600	12.7	Rulment 186165X/186254XPT
170	254	50	88.96	98.48				2600	12.7	Rulment 186170/186254XPT
177.8	227.013	35	63.48	69.24				2700	5.07	Rulment 115177X/115227XPT
177.8	254	50	88.96	98.48				2600	12.7	Rulment 186177X/186254XPT
177.8	288.925	71	122.25	138.12				2300	27.2	Rulment 280177X/280288XPT
185	258	50	90	100				2500	12	187185/187258PT Rulment
190.5	282.575	54	91.42	105.71				2300	14.1	Rulment 242190X/242282XPT
190.5	290	52	96	105				2200	14.2	Rulment 206190X/206290PT
203.2	310	72	121.08	138.54				2100	25	Rulment 283203X/283310PT
203.2	317.5	72	121.08	138.54				2100	25	Rulment 283203X/283317XPT
210	290	52	96	105				2200	13.1	206210/206290PT Rulment
210	310	72	121.08	138.54				2100	25	283210/283310PT Rulment
210	317.5	72	121.08	138.54				2100	25	283210/283317XPT Rulment
230	327.025	55	90.24	106.12				1900	21	244230/244327XPT Rulment
230	330	55	90.24	106.12				1900	21	Rulment 244230X/244330PT
234.95	327.025	55	90.24	106.12				1900	21	Rulment 244234X/244327XPT
234.95	330	55	90.24	106.12				1900	21	Rulment 244234X/244330PT
260	385	66	114.34	130.12				1700	32	382260/382385PT Rulment
25	52		36.5	43				13300	0.46	74025/74052GUD Rulment
30	62		42.5	51				11600	0.64	70030/70062GUD Rulment
30	66.675		42.48	52				10400	0.78	Rulment 80030/80066XGUD

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
30	68		42.48	52				10400	0.78	Rulment 80030/80068GUD
32	72		46.5	57				9600	0.825	Rulment 100031X/100072GUD
32	76.2		46.5	57				9600	0.825	Rulment 100031X/100076XGUD
32	80		46.5	57				9600	0.825	Rulment 100031X/100080GUD
33	66.675		42.48	52				10400	0.78	Rulment 80033X/80066XGUD
33	68		42.48	52				10400	0.78	Rulment 80033X/80068GUD
35	72		46.5	57				9600	0.825	Rulment 100034X/100072GUD
35	76.2		46.5	57				9600	0.825	Rulment 100034X/100076XGUD
35	80		46.5	57				9600	0.825	Rulment 100034X/100080GUD
35	66.675		42.48	52				10400	0.72	80035/80066XGUD Rulment
35	68		42.48	52				10400	0.75	80035/80068GUD Rulment
35	72		46.5	57				9600	0.825	100035/100072GUD Rulment
35	76.2		46.5	57				9600	0.825	100035/100076XGUD Rulment
35	80		46.5	57				9600	0.825	100035/100080GUD Rulment
36	72		36.5	42				9600	0.58	102036/102072GUD Rulment
38	76		45.5	57				8800	0.85	Rulment 101038X/101076GUD
38	76.2		45.5	57				8800	0.85	Rulment 101038X/101076XGUD
38	80		45.5	57				8800	0.85	Rulment 101038X/101080GUD
40	76		45.5	57				8800	0.85	101040/101076GUD Rulment
40	76.2		45.5	57				8800	0.85	101040/101076XGUD Rulment
40	80		45.5	57				8800	1.025	101040/101080GUD Rulment
40	85		48.66	55				8200	1.19	112040/112085GUD Rulment
41	76		45.5	57				8800	0.85	Rulment 101041X/101076GUD
41	76.2		45.5	57				8800	0.85	Rulment 101041X/101076XGUD
41	80		45.5	57				8800	0.85	Rulment 101041X/101080GUD
41	85		48.66	55				8200	1.07	Rulment 112041X/112085GUD
44	90		51.3	64				7400	1.33	Rulment 111044X/111090GUD
44	93.266		51.3	64				7400	1.33	Rulment 111044X/111093XGUD
44	85		48.66	55				8200	1.07	Rulment 112044X/112085GUD
44	85		55.66	62				8200	1.17	Rulment 119044X/119085GUD

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
44	88.9		55.66	62				8200	1.17	Rulment 119044X/119088XGUD
45	85		48.66	55				8200	1.07	112045/112085GUD Rulment
45	85		55.66	62				8200	1.17	119045/119085GUD Rulment
45	88.9		55.66	62				8200	1.17	119045/119088XGUD Rulment
50	90		51.3	64				7400	1.33	111050/111090GUD Rulment
50	93.266		51.3	64				7400	1.33	111050/111093XGUD Rulment
50	96.838		54	65				6900	1.945	110050/110096XGUD Rulment
50	98.425		54	65				6900	1.945	Rulment 110050/110098XGUD
50	100		54	65				6900	1.945	110050/110100GUD Rulment
51	90		51.3	64				7400	1.33	Rulment 111050X/111090GUD
51	96.838		54	65				6900	1.945	Rulment 110050X/110096XGUD
51	98.425		54	65				6900	1.945	Rulment 110050X/110098XGUD
51	100		54	65				6900	1.945	Rulment 110050X/110100GUD
54	96.838		54	65				6900	1.945	Rulment 110053X/110096XGUD
54	98.425		54	65				6900	1.945	Rulment 110053X/110098XGUD
54	100		54	65				6900	1.945	Rulment 110053X/110100GUD
55	96.838		54	65				6900	1.945	110055/110096XGUD Rulment
55	98.425		54	65				6900	1.945	110055/110098XGUD Rulment
55	100		54	65				6900	1.765	110055/110100GUD Rulment
57	96.838		54	65				6900	1.945	Rulment 110057X/110096XGUD
57	98.425		54	65				6900	1.945	Rulment 110057X/110098XGUD
57	100		54	65				6900	1.945	Rulment 110057X/110100GUD
57	100		46.88	58				6600	1.825	Rulment 113057X/113100GUD
57	101.6		46.88	58				6600	1.825	Rulment 113057X/113101XGUD
57	110		60.3	73				6200	2.39	Rulment 120057X/120110GUD
57	112.712		60.3	73				6200	2.39	Rulment 120057X/120112XGUD
60	100		46.88	58				6600	1.825	113060/113100GUD Rulment
60	101.6		46.88	58				6600	1.825	Rulment 113060/113101XGUD
60	110		60.3	73				6200	2.39	120060/120110GUD Rulment
60	112.712		60.3	73				6200	2.39	120060/120112XGUD Rulment

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
60	120		59.88	71				5700	2.86	130060/130120GUD Rulment
60	127		59.88	71				5700	2.86	130060/130127GUD Rulment
60	100		46.88	58				6600	1.825	Rulment 113060X/113100GUD
60	101.6		46.88	58				6600	1.825	Rulment 113060X/113101XGUD
64	110		60.3	73				6200	2.21	Rulment 120063X/120110GUD
64	120		59.88	71				5700	2.86	Rulment 130063X/130120GUD
64	127		59.88	71				5700	2.86	Rulment 130063X/130127GUD
65	120		59.88	71				5700	2.86	130065/130120GUD Rulment
65	127		59.88	71				5700	2.86	130065/130127GUD Rulment
70	112.712		60.3	73				5800	2.015	Rulment 124069X/124112XGUD
70	120		59.88	71				5700	2.61	Rulment 130069X/130120GUD
70	120		73.12	89				5700	2.73	Rulment 135069X/135120GUD
70	127		59.88	71				5700	2.86	Rulment 130069X/130127GUD
70	112.712		60.3	73				5800	2.015	124070/124112XGUD Rulment
70	120		59.88	71				5700	2.64	130070/130120GUD Rulment
70	127		59.88	71				5700	2.86	130070/130127GUD Rulment
73	120		49.7	64				5500	2.35	Rulment 123073X/123120GUD
73	120.65		49.7	64				5500	2.35	Rulment 123073X/123120XGUD
73	121.444		49.7	64				5500	2.35	Rulment 123073X/123121XGUD
73	123.825		49.7	64				5500	2.35	Rulment 123073X/123123XGUD
75	120		49.7	64				5500	2.25	123075/123120GUD Rulment
75	120.65		49.7	64				5500	2.25	123075/123120XGUD Rulment
75	121.444		49.7	64				5500	2.25	123075/123121XGUD Rulment
75	123.825		49.7	64				5500	2.25	123075/123123XGUD Rulment
75	127		60.5	73				5300	3.23	133075/133127GUD Rulment
75	130		60.5	73				5300	3.23	133075/133130GUD Rulment
75	133.35		60.5	73				5300	3.23	133075/133133XGUD Rulment
75	136.525		60.5	73				5300	3.23	133075/133136XGUD Rulment
76	120		49.7	64				5500	2.25	Rulment 123076X/123120GUD
76	120.65		49.7	64				5500	2.25	Rulment 123076X/123120XGUD

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
76	123.825		49.7	64				5500	2.25	Rulment 123076X/123123XGUD
76	127		60.5	73				5300	3.23	133076X/133127GUD Rulment
76	130		60.5	73				5300	3.23	Rulment 133076X/133130GUD
76	133.35		60.5	73				5300	3.23	Rulment 133076X/133133XGUD
76	136.525		60.5	73				5300	3.23	Rulment 133076X/133136XGUD
78	120		49.7	64				5500	2.25	Rulment 123077X/123120GUD
78	120.65		49.7	64				5500	2.25	Rulment 123077X/123120XGUD
78	121.444		49.7	64				5500	2.25	Rulment 123077X/123121XGUD
78	123.825		49.7	64				5500	2.25	Rulment 123077X/123123XGUD
80	140		69.14	85				4900	4.345	140080/140140GUD Rulment
81	133.35		58.12	74				4900	2.25	Rulment 126080X/126133XGUD
83	133.35		58.12	74				4900	2.25	Rulment 126082X/126133XGUD
83	136.525		58.12	74				4900	2.25	Rulment 126082X/126136XGUD
83	140		69.14	85				4900	4.145	Rulment 140082X/140140GUD
84	133.35		58.12	74				4900	2.4	Rulment 126084X/126133XGUD
84	136.525		58.12	74				4900	2.4	Rulment 126084X/126136XGUD
85	140		69.14	85				4900	3.945	140085/140140GUD Rulment
85	170		89	106				4200	8.345	210085/210170GUD Rulment
86	133.35		58.12	74				4900	2.4	Rulment 126085X/126133XGUD
86	136.525		58.12	74				4900	2.4	Rulment 126085X/126136XGUD
89	133.35		58.12	74				4900	2.4	Rulment 126088X/126133XGUD
89	136.525		58.12	74				4900	2.4	Rulment 126088X/126136XGUD
90	133.35		60.12	76				4800	3.9	117090/117133XGUD Rulment
90	170		89	106				4200	8.345	210090/210170GUD Rulment
90	150		62	75				4400	4.625	131090/131150GUD Rulment
90	152.4		62	75				4400	4.625	131090/131152XGUD Rulment
90	158.75		62	75				4400	4.625	131090/131158XGUD Rulment
90	152.4		75.8	92				4300	4.95	160090/160152XGUD Rulment
90	158.75		75.8	92				4300	4.95	160090/160158XGUD Rulment
90	160		75.8	92				4300	4.95	160090/160160GUD Rulment

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
90	161.925		75.8	92				4300	4.95	160090/160161XGUD Rulment
92	150		62	75				4400	4.625	Rulment 131092X/131150GUD
92	152.4		62	75				4400	4.625	Rulment 131092X/131152XGUD
92	158.75		62	75				4400	4.625	Rulment 131092X/131158XGUD
94	152.4		62	75				4400	4.625	Rulment 131093X/131152XGUD
94	150		62	75				4400	4.625	Rulment 131093X/131150GUD
94	158.75		62	75				4400	4.625	Rulment 131093X/131158XGUD
95	150		62	75				4400	4.625	131095/131150GUD Rulment
95	152.4		62	75				4400	4.505	131095/131152XGUD Rulment
95	158.75		62	75				4400	4.625	131095/131158XGUD Rulment
95	170		89	106				4200	8.345	210095/210170GUD Rulment
97	152.4		62	75				4400	4.345	131097/131152XGUD Rulment
97	150		62	75				4400	4.625	131097/131150GUD Rulment
97	158.75		62	75				4400	4.625	131097/131158XGUD Rulment
98	152.4		75.8	92				4300	4.95	Rulment 160098X/160152XGUD
98	158.75		75.8	92				4300	4.95	Rulment 160098X/160158XGUD
98	160		75.8	92				4300	4.95	Rulment 160098X/160160GUD
98	161.925		75.8	92				4300	4.95	Rulment 160098X/160161XGUD
100	170		84	100				3900	11	180100/180170GUD Rulment
100	180		84	100				3900	9.1	180100/180180GUD Rulment
100	180.975		84	100				3900	11	Rulment 180100/180180XGUD
100	190		84	100				3900	11	180100/180190GUD Rulment
102	165.1		67.96	87				3900	9.16	Rulment 141101X/141165XGUD
102	170		84	100				3900	11	Rulment 180101X/180170GUD
102	180		84	100				3900	11	Rulment 180101X/180180GUD
102	180.975		84	100				3900	9.28	Rulment 180101X/180180XGUD
102	190		84	100				3900	10.96	Rulment 180101X/180190GUD
105	170		84	100				3900	11	180105/180170GUD Rulment
105	180		84	100				3900	11	180105/180180GUD Rulment
105	180.975		84	100				3900	8.82	Rulment 180105/180180XGUD

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
105	190		84	100				3900	10.5	180105/180190GUD Rulment
108	165.1		67.96	87				3900	9.16	Rulment 141107X/141165XGSUD
111	180.975		82.6	108				3600	8.34	Rulment 181111X/181180XGUD
111	190		82.6	108				3600	9.95	Rulment 181111X/181190GUD
111	190.5		82.6	108				3600	10.05	Rulment 181111X/181190XGUD
111	200.025		82.6	108				3600	8.34	Rulment 181111X/181200XGUD
115	165		55	65				3900	3.36	105115/105165GUD Rulment
115	180.975		82.6	108				3600	7.84	181115/181180XGUD Rulment
115	190		82.6	108				3600	9.45	181115/181190GUD Rulment
115	190.5		82.6	108				3600	9.55	181115/181190XGUD Rulment
115	200.025		82.6	108				3600	8.34	181115/181200XGUD Rulment
118	180.975		82.6	108				3600	7.42	Rulment 181118/181180XGUD
118	190		82.6	108				3600	9.03	181118/181190GUD Rulment
118	190.5		82.6	108				3600	9.13	181118/181190XGUD Rulment
118	200.025		82.6	108				3600	8.34	181118/181200XGUD Rulment
120	165		55	65				3900	3.36	105120/105165GUD Rulment
120	190		82.6	108				3500	8.46	184120/184190GUD Rulment
120	190.5		82.6	108				3500	8.46	184120/184190XGUD Rulment
120	199		82.6	108				3500	8.46	184120/184199GUD Rulment
120	200		82.6	108				3500	8.46	184120/184200GUD Rulment
127	196.85		85.74	101.6				3400	8.8	Rulment 164127X/164196XGUD
127	200.025		85.74	101.6				3400	8.8	Rulment 164127X/164200XGUD
127	215		92	110				3100	13.54	Rulment 200127X/200215GUD
127	215.9		92	110				3100	13.54	Rulment 200127X/200215XGUD
133	196.85		85.74	101.6				3400	8.8	Rulment 164133X/164196XGUD
133	200.025		85.74	101.6				3400	8.8	Rulment 164133X/164200XGUD
133	215		92	110				3100	13.54	Rulment 200133X/200215GUD
133	215.9		92	110				3100	12.49	Rulment 200133X/200215XGUD
137	215		92	110				3100	13.54	Rulment 200136X/200215GUD
137	215.9		92	110				3100	11.97	Rulment 200136X/200215XGUD

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
140	215		92	110				3100	13.54	Rulment 200139X/200215GUD
140	215.9		92	110				3100	13.54	Rulment 200139X/200215XGUD
140	241.3		104	126				2900	19.86	Rulment 240139X/240241XGUD
140	200		78	92.3				3100	9.7	161140/161200GSUD Rulment
140	200.025		78	92.3				3100	9.7	161140/161200XGSUD Rulment
143	200		78	92.3				3100	9.7	161142X/161200GSUD Rulment
143	200.025		78	92.3				3100	9.7	Rulment 161142X/161200XGSUD
145	241.3		104	126				2900	18.78	240145/240241XGUD Rulment
145	256		92	110				2700	14.49	203145/203256GUD Rulment
149	241.3		104	126				2900	18.78	Rulment 240149X/240241XGUD
150	210		76	92				3000	9.96	163150/163210GUD Rulment
152	222.25		81.2	105				3000	10.73	Rulment 183152X/183222XGUD
152	254		116.9	155				2600	24.87	Rulment 281152X/281254XGUD
152	266.7		116.9	155				2600	24.87	Rulment 281152X/281266XGUD
156	254		116.9	155				2600	24.87	Rulment 281155X/281254XGUD
156	266.7		116.9	155				2600	24.87	Rulment 281155X/281266XGUD
156	235		92	110				2700	14.49	203156/203235GUD Rulment
165	254		88.96	108				2600	14.9	Rulment 186165X/186254XGUD
170	254		88.96	108				2600	14.9	186170/186254XGUD Rulment
178	227.013		63.48	75				2700	5.93	Rulment 115177X/115227XGUD
178	254		88.96	108				2600	14.9	Rulment 186177X/186254XGUD
178	288.925		122.25	154				2300	31.8	Rulment 280177X/280288XGUD
185	258		90	110				2500	11.94	187185/187258GUD Rulment
190	266.7		94.14	113.18				2400	15	204190/204266XGUD Rulment
191	266.7		94.14	113.18				2400	15	Rulment 204190X/204266XGUD
191	282.575		91.42	120				2300	19.3	Rulment 242190X/242282XGUD
191	290		96	114				2200	17	Rulment 206190X/206290GUD
203	310		121.07	156				2100	32	283203X/283310GUD Rulment
203	317.5		121.07	156				2100	35.3	Rulment 283203X/283317XGUD
210	290		96	114				2200	17	206210/206290GUD Rulment

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
210	310		121.07	156				2100	31.2	283210/283310GUD Rulment
210	317.5		121.07	156				2100	34.5	283210/283317XGUD Rulment
216	355.6		124.72	166				1900	50	Rulment 284215X/284355XGUD
229	355.6		124.72	166				1900	50	Rulment 284228X/284355XGUD
230	327.025		90.24	122				1900	23	244230/244327XGUD Rulment
230	330		90.24	122				1900	26.84	244230/244330GUD Rulment
235	327.025		90.24	122				1900	20	Rulment 244234X/244327XGUD
235	330		90.24	122				1900	26.8	244234X/244330GUD Rulment
235	355.6		124.72	166				1900	47.43	Rulment 284234X/284355XGUD
254	400.05		114.24	146				1700	53.98	Rulment 382254X/382400XGUD
275	406.4		140	176				1600	65.94	320275/320406XGUD Rulment
280	406.4		140	176				1600	63.18	Rulment 320280X/320406XGUD
330	482.6		158.72	200				1400	104	Rulment 380330X/380482XGUD
338	419.1		79	94				1500	30.4	Rulment 152338X/152419XGUD
356	482.6		100.55	145				1400	57.3	Rulment 282355X/282482XGUD
381	508		147	187				1300	79.2	Rulment 303381X/303508XGUD
406	549.275		152.36	200				1200	96.8	323406XS/323549XGSUD Rulment
432	533.4		100.78	123				1200	44.7	Rulment 232431X/232533XGUD
457	596.9		147	187				1100	94.3	Rulment 300457X/300596XGUD
506	636		147	187				1000	115	307506/307636GUD Rulment
25	52		36.5	43				13300	0.48	74025/74052HUWF Rulment
30	62		42.5	51				11600	0.66	Rulment 70030/70062HUWF
30	66.675		42.48	52				10400	0.8	Rulment 80030/80066XHUWF
30	68		42.48	52				10400	0.8	Rulment 80030/80068HUWF
32	72		46.5	57				9600	0.86	Rulment 100031X/100072HUWF
32	76.2		46.5	57				9600	0.86	Rulment 100031X/100076XHUWF
32	80		46.5	57				9600	0.86	Rulment 100031X/100080HUWF
33	66.675		42.48	52				10400	0.8	Rulment 80033X/80066XHUWF
33	68		42.48	52				10400	0.8	Rulment 80033X/80068HUWF
35	72		46.5	57				9600	0.86	Rulment 100034X/100072HUWF

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
35	76.2		46.5	57				9600	0.86	Rulment 100034X/100076XHUWF
35	80		46.5	57				9600	0.86	Rulment 100034X/100080HUWF
35	66.675		42.48	52				10400	0.74	Rulment 80035/80066XHUWF
35	72		46.5	57				9600	0.855	100035/100072HUWF Rulment
35	76.2		46.5	57				9600	0.86	Rulment 100035/100076XHUWF
35	80		46.5	57				9600	0.86	Rulment 100035/100080HUWF
36	72		36.5	42				9600	0.595	Rulment 102036/102072HUWF
38	76		45.5	57				8800	0.865	Rulment 101038X/101076HUWF
38	76.2		45.5	57				8800	0.865	Rulment 101038X/101076XHUWF
38	80		45.5	57				8800	0.865	Rulment 101038X/101080HUWF
40	76		45.5	57				8800	0.865	101040/101076HUWF Rulment
40	76.2		45.5	57				8800	0.865	Rulment 101040/101076XHUWF
40	80		45.5	57				8800	1.07	Rulment 101040/101080HUWF
40	85		48.66	55				8200	1.13	Rulment 112040/112085HUWF
41	76		45.5	57				8800	0.865	Rulment 101041X/101076HUWF
41	76.2		45.5	57				8800	0.865	Rulment 101041X/101076XHUWF
41	80		45.5	57				8800	0.865	Rulment 101041X/101080HUWF
41	85		48.66	55				8200	1.11	Rulment 112041X/112085HUWF
44	85		48.66	55				8200	1.11	Rulment 112044X/112085HUWF
44	85		55.66	62				8200	1.19	Rulment 119044X/119085HUWF
44	88.9		55.66	62				8200	1.19	Rulment 119044X/119088XHUWF
44	90		51.3	64				7400	1.38	Rulment 111044X/111090HUWF
44	93.266		51.3	64				7400	1.38	Rulment 111044X/111093XHUWF
45	85		48.66	55				8200	1.11	Rulment 112045/112085HUWF
45	85		55.66	62				8200	1.19	119045/119085HUWF Rulment
45	88.9		55.66	62				8200	1.19	119045/119088XHUWF Rulment
50	90		51.3	64				7400	1.38	Rulment 111050/111090HUWF
50	93.266		51.3	64				7400	1.38	111050/111093XHUWF Rulment
50	96.838		54	65				6900	2.005	Rulment 110050/110096XHUWF
50	98.425		54	65				6900	2.005	Rulment 110050/110098XHUWF

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
50	100		54	65				6900	2.005	Rulment 110050/110100HUWF
51	90		51.3	64				7400	1.38	Rulment 111050X/111090HUWF
51	96.838		54	65				6900	2.005	Rulment 110050X/110096XHUWF
51	98.425		54	65				6900	2.005	Rulment 110050X/110098XHUWF
51	100		54	65				6900	2.005	Rulment 110050X/110100HUWF
54	96.838		54	65				6900	2.005	Rulment 110053X/110096XHUWF
54	98.425		54	65				6900	2.005	Rulment 110053X/110098XHUWF
54	100		54	65				6900	2.005	Rulment 110053X/110100HUWF
55	96.838		54	65				6900	2.005	110055/110096XHUWF Rulment
55	98.425		54	65				6900	2.005	110055/110098XHUWF Rulment
55	100		54	65				6900	1.825	Rulment 110055/110100HUWF
57	96.838		54	65				6900	2.005	Rulment 110057X/110096XHUWF
57	96.838		54	65				6900	2.005	Rulment 110057X/110098XHUWF
57	100		54	65				6900	2.005	Rulment 110057X/110100HUWF
57	100		46.88	58				6600	1.9	Rulment 113057X/113100HUWF
57	101.6		46.88	58				6600	1.9	Rulment 113057X/113101XHUWF
57	110		60.3	73				6200	2.47	Rulment 120057X/120110HUWF
57	112.712		60.3	73				6200	2.47	Rulment 120057X/120112XHUWF
60	100		46.88	58				6600	1.9	Rulment 113060/113100HUWF
60	101.6		46.88	58				6600	1.9	Rulment 113060/113101XHUWF
60	110		60.3	73				6200	2.47	Rulment 120060/120110HUWF
60	112.712		60.3	73				6200	2.47	Rulment 120060/120112XHUWF
60	120		59.88	71				5700	2.96	Rulment 130060/130120HUWF
60	127		59.88	71				5700	2.96	130060/130127HUWF Rulment
60	100		46.88	58				6600	1.9	Rulment 113060X/113100HUWF
60	101.6		46.88	58				6600	1.9	Rulment 113060X/113101XHUWF
64	110		60.3	73				6200	2.29	Rulment 120063X/120110HUWF
64	120		59.88	71				5700	2.96	Rulment 130063X/130120HUWF
64	127		59.88	71				5700	2.96	Rulment 130063X/130127HUWF
65	120		59.88	71				5700	2.96	130065/130120HUWF Rulment

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
65	127		59.88	71				5700	2.96	130065/130127HUWF Rulment
70	127		59.88	71				5700	2.96	Rulment 130069X/130127HUWF
70	112.712		60.3	73				5800	2.085	Rulment 124069X/124112XHUWF
70	120		59.88	71				5700	2.71	Rulment 130069X/130120HUWF
70	120		73.12	89				5700	2.79	Rulment 135069X/135120HUWF
70	112.712		60.3	73				5800	2.085	124070/124112XHUWF Rulment
70	120		59.88	71				5700	2.7	130070/130120HUWF Rulment
70	127		59.88	71				5700	2.96	130070/130127HUWF Rulment
73	120		49.7	64				5500	2.35	Rulment 123073X/123120HUWF
73	120.65		49.7	64				5500	2.35	Rulment 123073X/123120XHUWF
73	121.444		49.7	64				5500	2.35	Rulment 123073X/123121XHUWF
73	123.825		49.7	64				5500	2.35	Rulment 123073X/123123XHUWF
75	120		49.7	64				5500	2.25	123075/123120HUWF Rulment
75	120.65		49.7	64				5500	2.25	Rulment 123075/123120XHUWF
75	121.444		49.7	64				5500	2.25	123075/123121XHUWF Rulment
75	123.825		49.7	64				5500	2.25	123075/123123XHUWF Rulment
75	127		60.5	73				5300	3.3	133075/133127HUWF Rulment
75	130		60.5	73				5300	3.3	133075/133130HUWF Rulment
75	133.35		60.5	73				5300	3.3	133075/133133XHUWF Rulment
75	136.525		60.5	73				5300	3.3	133075/133136XHUWF Rulment
76	120		49.7	64				5500	2.25	Rulment 123076X/123120HUWF
76	120.65		49.7	64				5500	2.25	Rulment 123076X/123120XHUWF
76	123.825		49.7	64				5500	2.25	Rulment 123076X/123123XHUWF
76	127		60.5	73				5300	3.3	Rulment 133076X/133127HUWF
76	130		60.5	73				5300	3.3	Rulment 133076X/133130HUWF
76	133.35		60.5	73				5300	3.3	Rulment 133076X/133133XHUWF
76	136.525		60.5	73				5300	3.3	Rulment 133076X/133136XHUWF
78	120		49.7	64				5500	2.25	Rulment 123077X/123120HUWF
78	120.65		49.7	64				5500	2.25	Rulment 123077X/123120XHUWF
78	121.444		49.7	64				5500	2.25	Rulment 123077X/123121XHUWF

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
78	123.825		49.7	64				5500	2.25	Rulment 123077X/123123XHUWF
80	140		69.14	85				4900	4.545	Rulment 140080/140140HUWF
81	133.35		58.12	74				4900	2.25	Rulment 126080X/126133XHUWF
83	133.35		58.12	74				4900	2.25	Rulment 126082X/126133XHUWF
83	136.525		58.12	74				4900	2.25	Rulment 126082X/126136XHUWF
83	140		69.14	85				4900	4.345	Rulment 140082X/140140HUWF
84	133.35		58.12	74				4900	2.4	Rulment 126084X/126133XHUWF
84	136.525		58.12	74				4900	2.4	Rulment 126084X/126136XHUWF
85	140		69.14	85				4900	4.145	140085/140140HUWF Rulment
85	170		89	106				4200	8.545	210085/210170HUWF Rulment
86	133.35		58.12	74				4900	2.4	Rulment 126085X/126133XHUWF
86	136.525		58.12	74				4900	2.4	Rulment 126085X/126136XHUWF
89	133.35		58.12	74				4900	2.4	Rulment 126088X/126133XHUWF
89	136.525		58.12	74				4900	2.4	Rulment 126088X/126136XHUWF
90	133.35		60.12	76				4800	4	117090/117133XHUWF Rulment
90	150		62	75				4400	4.745	131090/131150HUWF Rulment
90	152.4		62	75				4400	4.745	131090/131152XHUWF Rulment
90	152.4		75.8	92				4300	5.15	Rulment 160090/160152XHUWF
90	158.75		62	75				4400	4.745	131090/131158XHUWF Rulment
90	158.75		75.8	92				4300	5.15	160090/160158XHUWF Rulment
90	160		75.8	92				4300	5.15	Rulment 160090/160160HUWF
90	161.925		75.8	92				4300	5.15	Rulment 160090/160161XHUWF
90	170		89	106				4200	8.545	210090/210170HUWF Rulment
92	150		62	75				4400	4.745	Rulment 131092X/131150HUWF
92	152.4		62	75				4400	4.745	Rulment 131092X/131152XHUWF
92	158.75		62	75				4400	4.745	Rulment 131092X/131158XHUWF
94	150		62	75				4400	4.745	Rulment 131093X/131150HUWF
94	152.4		62	75				4400	4.745	Rulment 131093X/131152XHUWF
94	158.75		62	75				4400	4.745	Rulment 131093X/131158XHUWF
95	150		62	75				4400	4.745	131095/131150HUWF Rulment

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
95	152.4		62	75				4400	4.625	131095/131152XHUWF Rulment
95	158.75		62	75				4400	4.745	131095/131158XHUWF Rulment
95	170		89	106				4200	8.545	210095/210170HUWF Rulment
97	150		62	75				4400	4.745	131097/131150HUWF Rulment
97	152.4		62	75				4400	4.465	131097/131152XHUWF Rulment
97	158.75		62	75				4400	4.745	131097/131158XHUWF Rulment
98	152.4		75.8	92				4300	5.15	Rulment 160098X/160152XHUWF
98	158.75		75.8	92				4300	5.15	Rulment 160098X/160158XHUWF
98	160		75.8	92				4300	5.15	Rulment 160098X/160160HUWF
98	161.925		75.8	92				4300	5.15	Rulment 160098X/160161XHUWF
100	170		84	100				3900	9.52	Rulment 180100/180170HUWF
100	180		84	100				3900	9.42	Rulment 180100/180180HUWF
100	180.975		84	100				3900	9.52	Rulment 180100/180180XHUWF
100	190		84	100				3900	11.12	Rulment 180100/180190HUWF
102	165.1		67.96	87				3900	9.4	Rulment 141101X/141165XHUWF
102	170		84	100				3900	9.52	Rulment 180101X/180170HUWF
102	180		84	100				3900	9.52	Rulment 180101X/180180HUWF
102	180.975		84	100				3900	9.52	Rulment 180101X/180180XHUWF
102	190		84	100				3900	11.08	Rulment 180101X/180190HUWF
105	170		84	100				3900	9.52	Rulment 180105/180170HUWF
105	180		84	100				3900	9.52	Rulment 180105/180180HUWF
105	180.975		84	100				3900	9.06	Rulment 180105/180180XHUWF
105	190		84	100				3900	10.62	Rulment 180105/180190HUWF
108	165.1		67.96	87				3900	9.4	Rulment 141107X/141165XHSUWF
111	180.975		82.6	108				3600	8.6	Rulment 181111X/181180XHUWF
111	190		82.6	108				3600	10.1	Rulment 181111X/181190HUWF
111	190.5		82.6	108				3600	10.4	Rulment 181111X/181190XHUWF
111	200.025		82.6	108				3600	8.6	Rulment 181111X/181200XHUWF
115	165		55	65				3900	3.45	Rulment 105115/105165HUWF
115	180.975		82.6	108				3600	8.1	Rulment 181115/181180XHUWF

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
115	190		82.6	108				3600	9.6	Rulment 181115/181190HUWF
115	190.5		82.6	108				3600	9.9	Rulment 181115/181190XHUWF
115	200.025		82.6	108				3600	8.6	Rulment 181115/181200XHUWF
118	180.975		82.6	108				3600	7.68	Rulment 181118/181180XHUWF
118	190		82.6	108				3600	9.18	Rulment 181118/181190HUWF
118	190.5		82.6	108				3600	9.48	Rulment 181118/181190XHUWF
118	200.025		82.6	108				3600	8.6	Rulment 181118/181200XHUWF
120	165		55	65				3900	3.45	Rulment 105120/105165HUWF
120	190		82.6	108				3500	8.8	Rulment 184120/184190HUWF
120	190.5		82.6	108				3500	8.8	Rulment 184120/184190XHUWF
120	199		82.6	108				3500	8.8	Rulment 184120/184199HUWF
120	200		82.6	108				3500	8.8	Rulment 184120/184200HUWF
127	196.85		85.74	101.6				3400	9.2	Rulment 164127X/164196XHUWF
127	200.025		85.74	101.6				3400	9.2	Rulment 164127X/164200XHUWF
127	215		92	110				3100	13.9	Rulment 200127X/200215HUWF
127	215.9		92	110				3100	13.9	Rulment 200127X/200215XHUWF
133	196.85		85.74	101.6				3400	9.2	Rulment 164133X/164196XHUWF
133	196.85		76.74	92.6				3400	8.5	Rulment 164133X/164196XHSUWF
133	200.025		85.74	101.6				3400	9.2	Rulment 164133X/164200XHUWF
133	215		92	110				3100	13.9	Rulment 200133X/200215HUWF
133	215.9		92	110				3100	12.85	Rulment 200133X/200215XHUWF
137	215		92	110				3100	13.9	Rulment 200136X/200215HUWF
137	215.9		92	110				3100	12.33	Rulment 200136X/200215XHUWF
140	215		92	110				3100	13.9	Rulment 200139X/200215HUWF
140	215.9		92	110				3100	13.9	Rulment 200139X/200215XHUWF
140	241.3		104	126				2900	20.485	Rulment 240139X/240241XHUWF
140	200		78	92.3				3100	10	Rulment 161140/161200HSUWF
140	200.025		78	92.3				3100	10	Rulment 161140/161200XHSUWF
143	200		78	92.3				3100	10	Rulment 161142X/161200HSUWF
143	200.025		78	92.3				3100	10	Rulment 161142X/161200XHSUWF

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
145	241.3		104	126				2900	19.405	240145/240241XHUWF Rulment
145	256		92	110				2700	14.87	203145/203256HUWF Rulment
149	241.3		104	126				2900	20.485	Rulment 240149X/240241XHUWF
150	210		76	92				3000	10.2	Rulment 163150/163210HUWF
152	222.25		81.2	105				3000	11.15	Rulment 183152X/183222XHUWF
152	254		116.9	155				2600	25.6	Rulment 281152X/281254XHUWF
152	266.7		116.9	155				2600	25.6	Rulment 281152X/281266XHUWF
156	254		116.9	155				2600	25.6	Rulment 281155X/281254XHUWF
156	266.7		116.9	155				2600	25.6	Rulment 281155X/281266XHUWF
156	235		92	110				2700	14.87	Rulment 203156/203235HUWF
165	254		88.96	108				2600	15	Rulment 186165X/186254XHUWF
170	254		88.96	108				2600	15	186170/186254XHUWF Rulment
178	227.013		63.48	75				2700	6.15	Rulment 115177X/115227XHUWF
178	254		88.96	108				2600	15	Rulment 186177X/186254XHUWF
178	288.925		122.25	154				2300	32.6	Rulment 280177X/280288XHUWF
185	258		90	110				2500	12.3	Rulment 187185/187258HUWF
190	266.7		94.14	113.18				2400	15.5	204190/204266XHUWF Rulment
191	266.7		94.14	113.18				2400	15.5	Rulment 204190X/204266XHUWF
191	282.575		91.42	120				2300	20	Rulment 242190X/242282XHUWF
191	290		96	114				2200	17.3	Rulment 206190X/206290HUWF
203	310		121.08	156				2100	32.8	Rulment 283203X/283310HUWF
203	317.5		121.08	156				2100	36.3	Rulment 283203X/283317XHUWF
210	290		96	114				2200	17.3	Rulment 206210/206290HUWF
210	310		121.08	156				2100	32	Rulment 283210/283310HUWF
210	317.5		121.08	156				2100	35.5	283210/283317XHUWF Rulment
216	355.6		124.72	166				1900	51	Rulment 284215X/284355XHUWF
229	355.6		124.72	166				1900	51	Rulment 284228X/284355XHUWF
230	327.025		90.24	122				1900	23.2	244230/244327XHUWF Rulment
230	330		90.24	122				1900	27.35	Rulment 244230/244330HUWF
235	327.025		90.24	122				1900	21	Rulment 244234X/244327XHUWF

Dimensiuni de bază					Capacitate de sarcină de bază		Evaluări de viteză		Liturghie	Model
Dimensiuni de bază					dinamică	static	Viteza de referinta	Limitarea vitezei	Liturghie	Rulmentul nr.
d [mm]	D [mm]	B [mm]	C [mm]	T [mm]	C [kN]	C0 [kN]	[r/min]	[r/min]	[kg]	Rulmentul nr.
235	330		90.24	122				1900	27	Rulment 244234X/244330HUWF
235	355.6		124.72	166				1900	48.43	Rulment 284234X/284355XHUWF
254	400.05		114.24	146				1700	55.5	Rulment 382254X/382400XHUWF
275	406.4		140	176				1600	67.6	320275/320406XHUWF Rulment
280	406.4		140	176				1600	64.84	Rulment 320280X/320406XHUWF
330	482.6		157.73	200				1400	105	Rulment 380330X/380482XHUWF
338	419.1		79	94				1500	30.9	Rulment 152338X/152419XHUWF
356	482.6		100.55	145				1400	58.7	Rulment 282355X/282482XHUWF
381	508		147	187				1300	80	Rulment 303381X/303508XHUWF
406	549.275		152.36	200				1200	98.25	Rulment 323406XS/323549XHSUWF
432	533.4		100.78	123				1200	45	Rulment 232431X/232533XHUWF
457	596.9		147	187				1100	95	Rulment 300457X/300596XHUWF
506	636		147	187				1000	116	307506/307636HUWF Rulment

Proiectarea viitorului mișcării

Despre UKL

Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China BT2B 332504/HA2 - Rulmenți cu role conice cu două rânduri suppliers and OEM/ODM BT2B 332504/HA2 - Rulmenți cu role conice cu două rânduri company, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

Mai multe despre noi Ukl Bearing Manufacturing Co.,Ltd

0+

ani

Experiență în industrie
0+

Diversitatea modelelor
0+

Numărul de angajați
0

$

Valoarea anuală de export

Certificat de Onoare

Știri

De ce rulmentul cu role cilindrice NU 309 excelează în modelele de motoare și cutii de viteze?
04 Jun, 2026
Element cheie: Rulmentul NU 309 excelează ca rulment plutitor Pentru modelele de motoare și cutii de viteze în care dilatarea termică a arborelui este o preocupare critică, Rulm...

CITEȘTE MAI MULT
Cum se instalează un inel 2206 AV Nilos (ghid pas cu pas)
28 May, 2026
Instalați cu partea deschisă îndreptată spre rulment Pentru a instala corect 2206 AV Nilos Ring, poziționați-l astfel încât partea convexă (deschisă) să fie orientată sp...

CITEȘTE MAI MULT
Cum să alegi rulmentul cu bile de contact unghiular potrivit pentru aplicații de mare viteză?
21 May, 2026
Selectarea componentei de rulare optime pentru mașinile rotative de mare viteză necesită o înțelegere profundă a condițiilor de funcționare, a geometriei interne și a managementului termic. Dintre ...

CITEȘTE MAI MULT
Precizie sub presiune: factori cheie care conduc la selecția rulmenților pentru echipamente medicale
14 May, 2026
În domeniul tehnologiei medicale cu evoluție rapidă, chiar și cea mai mică componentă poate determina succesul unui dispozitiv care salvează vieți. Printre acestea, rulmenți pentru echipame...

CITEȘTE MAI MULT
